8300 IP Controller

Algo IP Endpoint Supervisor for On-premise Enterprise Deployments

The 8028 SIP Doorphone (G2) is a PoE IP intercom for hands-free visitor communication at a secure entrance door or gate. This IP intercom / doorphone is outdoor-rated and is also a fully compliant 3rd party SIP endpoint. As a result, the 8028 is compatible with most hosted / cloud and premise-based VoIP telephone systems.

Powered via PoE and UL/CSA, FCC and CE certified, this doorphone kit includes a controller, an intercom station with stainless steel faceplate, and a surface mount bracket for wall mounting. The intercom station can also be flush mounted into a double gang box (not included). Mounting gaskets are also included in the kit for installing the intercom in any outdoor environment. A brass faceplate is available for separate purchase. A vandal-proof version is also available: Algo 8028V Vandal-Proof IP Doorphone (Controller + Intercom).

The 8300 Algo IP Endpoint Supervisor (Controller) is UL/CSA, FCC and CE certified.

Product Sheet

User Guide

Features

Network supervision and monitoring of Algo IP endpoints to ensure higher system reliability, particularly for mission critical voice paging / public address (PA) and emergency notification deployments.
Efficient time-saving management and problem resolution of Algo IP endpoints to minimize down time.
Configuration and endpoint supervision via user friendly web interface / dashboard.

DESCRIPTION
SPECIFICATIONS
APPLICATIONS
COMPATIBLE ACCESSORIES

Description

Centralized Supervision & Monitoring

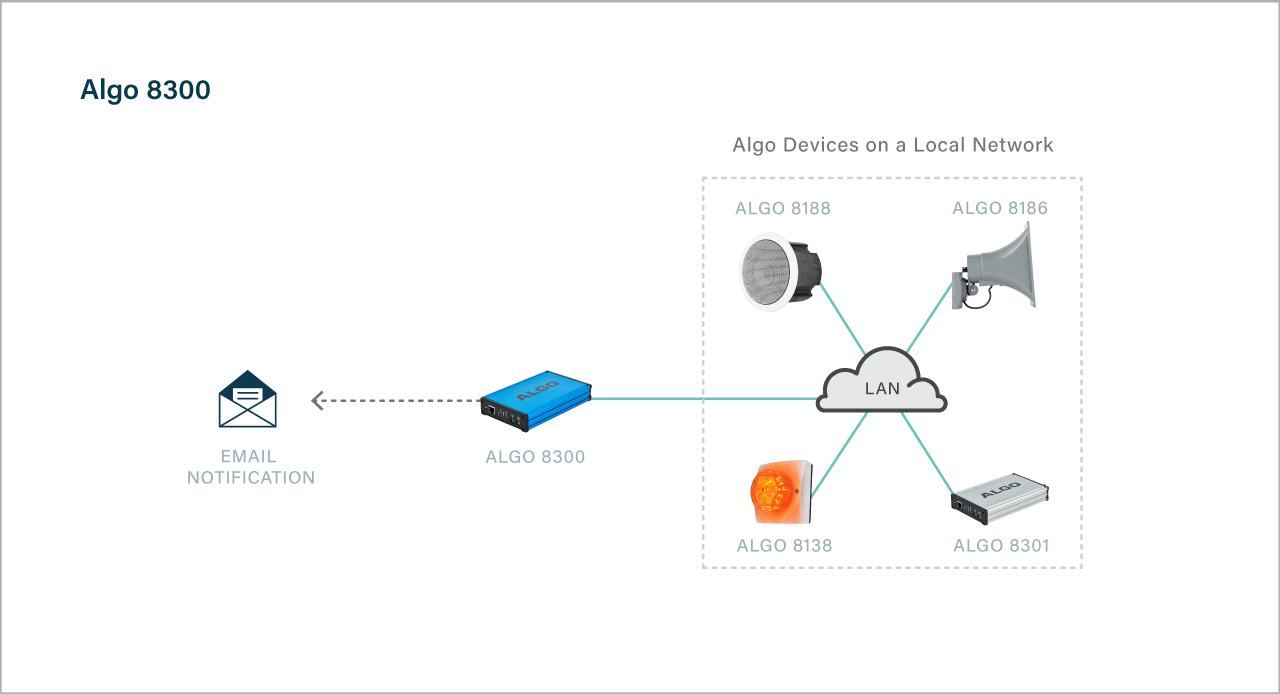

The 8300 provides supervision and monitoring of Algo IP endpoints, and to notify / alert when a device is not unreachable or offline. Configuration options include playing an alert via multicast and/or audio output. Alternatively, a SIP call to a target extension can be configured to play a message as an alert. In either scenario email alerts can be simultaneously configured. Any number and combination of Algo IP speakers, paging adapters and strobe lights can be part of an RTP multicast for notification purposes, where multicast zones can direct alerts to specific locations as desired.

In addition to offline status, other device status conditions visible via the 8300 dashboard include: online, software failure, SNMP disabled, and warning if the Controller is trying to reach the device. Monitoring intervals are also configurable.

Email alerts can also be configured in the 8300 for disconnected devices and heartbeat monitoring, even if no devices are offline.

Device details such as IP address, MAC address, Algo part no. and username of the device are also displayed in the dashboard, providing a convenient high-level summary of all Algo endpoints deployed. Up to 350 endpoints are currently supported.

Benefits of the Algo IP Endpoint Supervisor

Network supervision and monitoring of Algo IP endpoints to ensure higher system reliability, particularly for mission critical voice paging and emergency notification deployments.
Web browser convenience for centralized Algo device details and status condition.
Efficient time-saving management and problem resolution of Algo IP endpoints to minimize downtime.
Improved RoI.
PoE (IEEE 802.3af).

Specifications

Power

POWER INPUT

PoE (IEEE 802.3af Class 0) 48V, 12.95W

MAX POWER

IDLE POWER

Configuration & Provisioning

WEB INTERFACE

HTTP, HTTPS

SUPERVISION

Compatible with any third-party SNMP monitoring software

Networking

NETWORKING

IPv4, DHCP, VLAN

LINK LAYER

LLDP, CDP

QOS

DSCP (SIP, RTP, RTCP)

NAT

STUN, TURN, CRLF Keep Alive, SIP Outbound

ADDRESS RESOLUTION

DNS, SRV Record

TIME

NTP Server (up to four)

Audio

AUDIO MEMORY

1 GByte audio storage

Input/Output

RELAY OUTPUT

Not Configurable

RELAY POWER

Max 30 V 50 mA (normally open)

Environmental & Mechanical

ENVIRONMENTAL

0 to + 40° C (32 to 104° F); 10-95% RH non-condensing. Dry indoor locations only.

DIMENSIONS (PRODUCT)

6.75” x 4.3” x 1.18” (17.2 cm x 10.9 cm x 3.0 cm)

WEIGHT (PRODUCT)

0.85 lbs (0.4 kg)

WEIGHT (SHIPPING)

1.5 lbs (0.7 kg)

Compliance

RoHS, CE, FCC Class A, CISPR 22 Class A, CISPR 24, CSA/UL (USA & Canada), EN60950

Applications

Supervision and monitoring of Algo IP endpoints, particularly for larger enterprise deployments.
Where mission critical paging and emergency notification system reliability is required (e.g. schools, colleges/universities, manufacturing plant / factory, utility, transport terminals (i.e., airports, train, bus), hospitals, government facilities).
Where IT administrative procedures require proactive management of network devices to minimize impact of offline and disconnected endpoints.
