8373 IP Zone Paging Adapter

Wideband IP Paging Adapter With Zone Control for Integrating Legacy Analog Amplifiers – PoE

The PoE 8373 IP Zone Paging Adapter provides a dry page output to a traditional zoned amplifier, thereby offering a seamless bridge from VoIP to a legacy analog voice paging / public address (PA) system. The 8373 eliminates the need for a legacy zone controller, however, the paging adapter can also be deployed to add page zones to an existing single zone system. Three (3) zones are configurable on the paging adapter, which can be expanded using multicast. A contact closure is also available on the device.

The 8373 paging adapter is a fully compliant 3rd party SIP endpoint. As a result, this IP paging adapter is compatible with most hosted / cloud and premise-based VoIP telephone systems.

The 8373 SIP Zone Paging Adapter is UL/CSA, FCC and CE certified. The paging adapter includes brackets for wall mounting and is a PoE device.

Product Sheet

User Guide

Features

Three zone IP paging adapter for public address (PA).
Isolated and balanced line output eliminates hum / noise to a traditional amplifier.
Configurable line output supports amplifier input impedance between 600 Ohm and 10 kOhm.
Eliminates a legacy zone controller, and the need for an FXS port or ATA and telephone answering device hardware.
Simultaneously multicast to IP endpoints and provide line output audio to support both IP and analog infrastructure as one unified public address (PA) system.

Wideband HD voice for high intelligibility speech.
Configuration via user friendly web interface or auto-provisioning.
Secure SIP using TLS and SRTP.
PoE (IEEE 802.3af).
Ideal for integrating legacy analog public address (PA) systems in education, retail, manufacturing, transport terminals (i.e., airports, bus and rail stations), healthcare, government and other commercial environments.

DESCRIPTION
SPECIFICATIONS
APPLICATIONS
COMPATIBLE ACCESSORIES

Description

UNIFIED PAGING, RADIO, AND UC COMMUNICATION

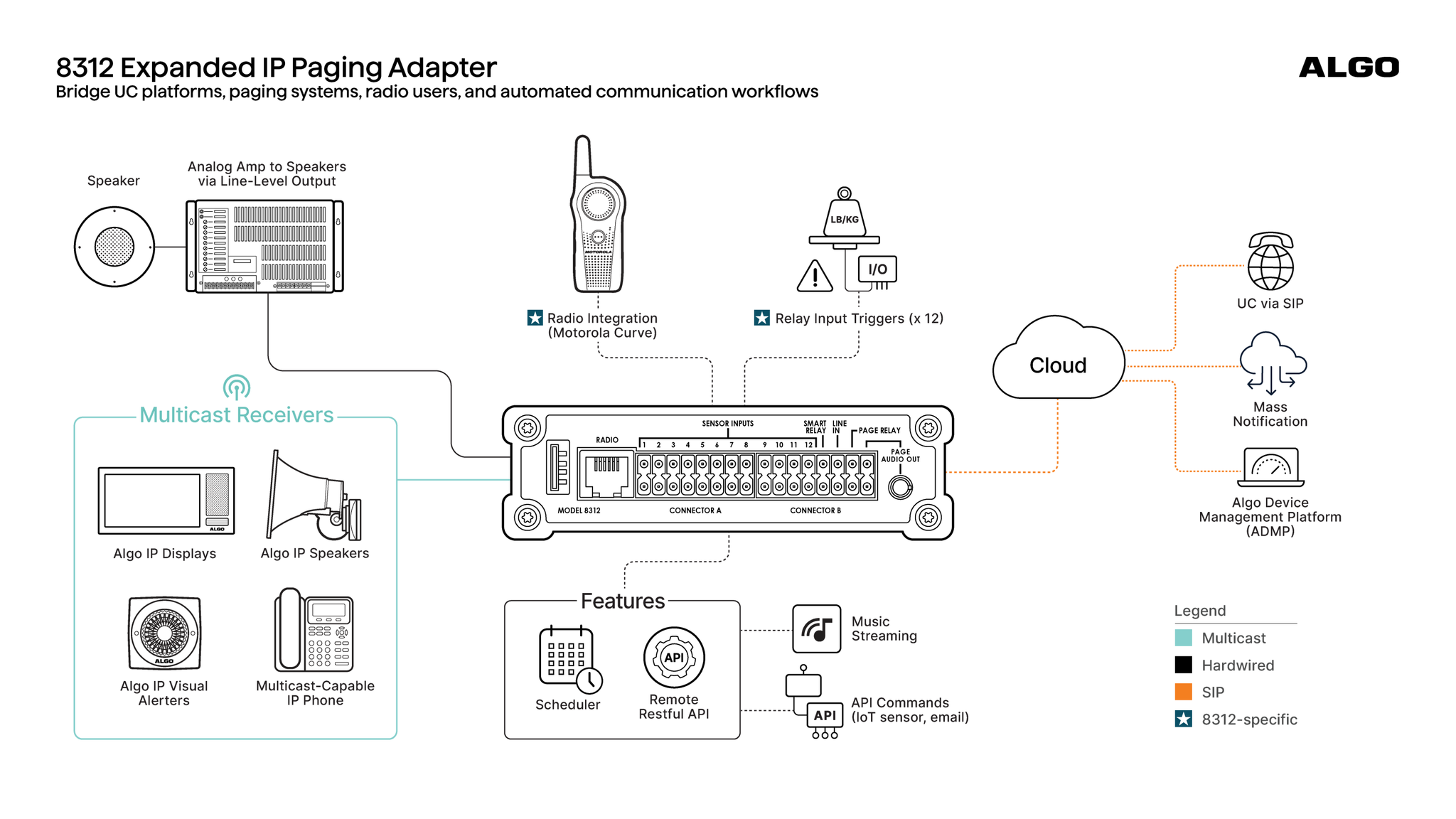

The 8312 Expanded IP Paging Adapter builds on the SIP paging capabilities of the 8301 IP Paging Adapter & Scheduler, combining UC-based voice paging, scheduling, legacy amplifier integration, handheld radio integration, and relay-triggered workflows in a single networkconnected device.

Distribute audio from UC platforms to overhead paging systems, compatible radio users, or both simultaneously. By bridging UC communications, PA infrastructure, and handheld radio systems, the 8312 extends critical messages across a wider range of physical environments and operational teams.

Optimized to integrate base station-free handheld radio systems, the 8312 is compatible with Motorola Curve radios. For radio systems that use a base station, the Algo 8301 may also be used. Contact Algo to discuss compatibility with other handheld radio systems

EXPANDED INPUTS FOR SENSOR-TRIGGERED AUDIO WORKFLOWS

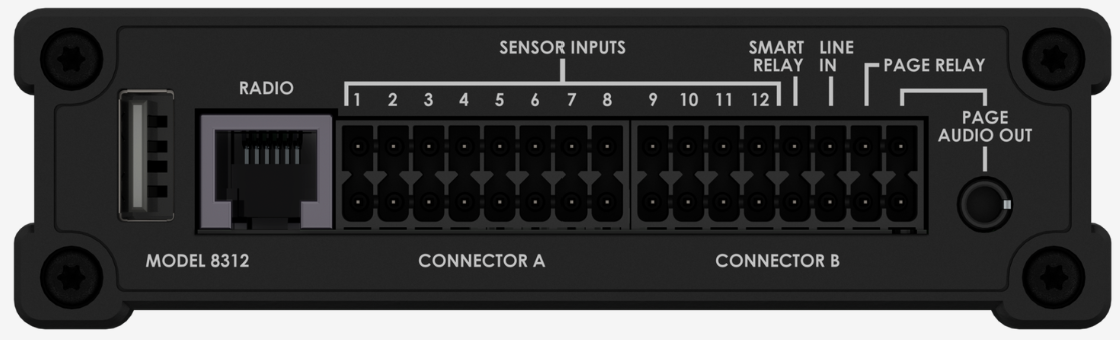

The 8312 adds twelve relay sensor inputs, in addition to the one standard smart relay, to support more event-driven communication workflows. Connect contact closures, call buttons, weight sensors, switches, or other operational triggers to initiate pre-recorded messages, paging events, SIP calls, endpoint actions, strobe activation, and other automated responses

By combining SIP paging, handheld radio integration, amplifier connectivity, scheduling, smart relay control, and sensor-triggered actions into one device, the 8312 simplifies deployment while expanding automated IP communication workflows.

Specifications

Power

POWER SOURCE

PoE (IEEE 802.3af Class 0) 48 V, 15.4 W

MAX POWER (AT DEVICE)

4 W

IDLE POWER

2 W

SIP

SIP EXTENSIONS

50 Page

SIP SIGNALLING/TRANSPORT PROTOCOLS

UDP, TCP, RTP

SECURITY

TLS, SRTP, Mutual Authentication

AUDIO CODECS

G.711 u-law, G.711 A-law, G.722 Wideband

Multicast

RTP MULTICAST

Send and Receive 50 Zones

AUDIO CODECS

G.711 u-law, G.711 A-law, G.722 Wideband, Opus Fullband

Third-Party Compatibility

RESTful API

Poly Group Page™

Microsoft Teams

Configuration & Provisioning

CONFIGURATION

Web interface or provisioning server

WEB INTERFACE

HTTP, HTTPS

PROVISIONING

TFTP, FTP, HTTP, HTTPS

DHCP Options 66, 150, 160

Reboot via SIP ‘check-sync'

ZTP

Supported

SUPERVISION

Compatible with Algo Device Management Platform (ADMP), Algo 8300 IP Controller, any third party SNMP monitoring software, and RTCP

Networking

NETWORKING

IPv4, IPv6, DHCP, VLAN, MDNS

LINK LAYER

LLDP, CDP

SECURITY

IEEE 802.1X

QOS

DSCP

NAT

STUN, TURN, CRLF Keep Alive, SIP Outbound

ADDRESS RESOLUTION

DNS, SRV Record

REDUNDANCY

Secondary and tertiary SIP server

TIME

NTP Server (up to four)

Audio

AUDIO MEMORY & FORMAT

1 GB audio storage for WAV or MP3 files

AUDIO CONTROLS

Volume, AGC, Latency, LF Cut

ANTI-FEEDBACK DELAY

Cache to memory and release

AUDIO DELAY

Programmable 1-1000 ms Synchronization Delay

Input/Output

LINE OUT MINI-XLR

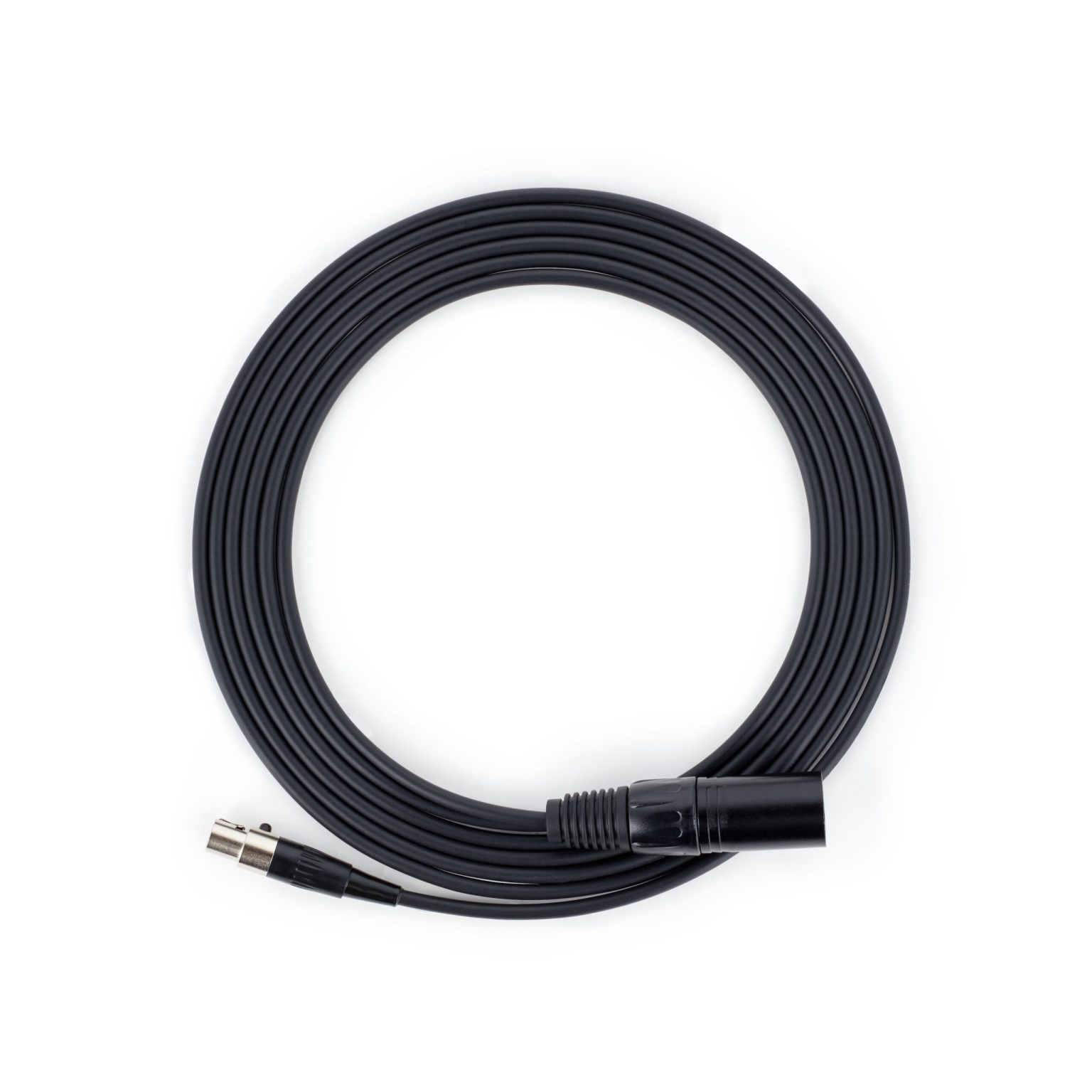

Balanced and isolated audio ouptut to external amplifier. Locking mini-XLR female to standard XLR male cable available. Output level defined using web interface.

TERMINAL BLOCK LINE OUT

Balanced and isolated wire pair output to external amplifier. Parallel to mini-XLR line out (polarity independent).

AMP IN

Input for high power output (25 V, 70 V, 100 V) from the amplifier.

CHANNEL 1/2/3

Output to Speaker(s)

RELAY OUTPUT

Max 30 V, 50 mA (normally open)

Power Rating for Audio Channel Switches

100 V AUDIO

720 W

70 V AUDIO

500 W

25 V AUDIO

180 W

The above is true whether one, two, or all three channels are active.

Environmental & Mechanical

ENVIRONMENTAL

0 to + 40° C (32 to 104° F); 10-95% RH non-condensing. Dry indoor locations only.

DIMENSIONS (PRODUCT)

6.75” x 4.3” x 1.18” (17.2 cm x 10.9 cm x 3.0 cm)

WEIGHT (PRODUCT)

0.9 lbs (0.4 kg)

WEIGHT (SHIPPING)

1.7 lbs (0.7 kg)

MOUNTING

Snap mounting bracket included

Compliance

RoHS, CE, FCC Class A, CISPR 22 Class A, CISPR 24, CSA/UL (USA & Canada), EN60950

Applications

VoIP phone system integration with traditional analog zoned amplifier to bridge audio for public address (PA).
Replace a legacy zone controller or create page zones from a previously single zoned analog amplifier.
Hybrid voice paging solution to integrate analog speaker infrastructure and multicast to Algo IP speakers, strobe lights and paging adapters, in addition to multicast supported IP telephones.
