Algo IP Buttons

8211 IP Single Button

Single-Button IP Endpoint for Fast, Flexible Activation

A standalone IP button designed for fast communication, alerting and emergency response workflows with direct network connectivity.

Request a Quote →

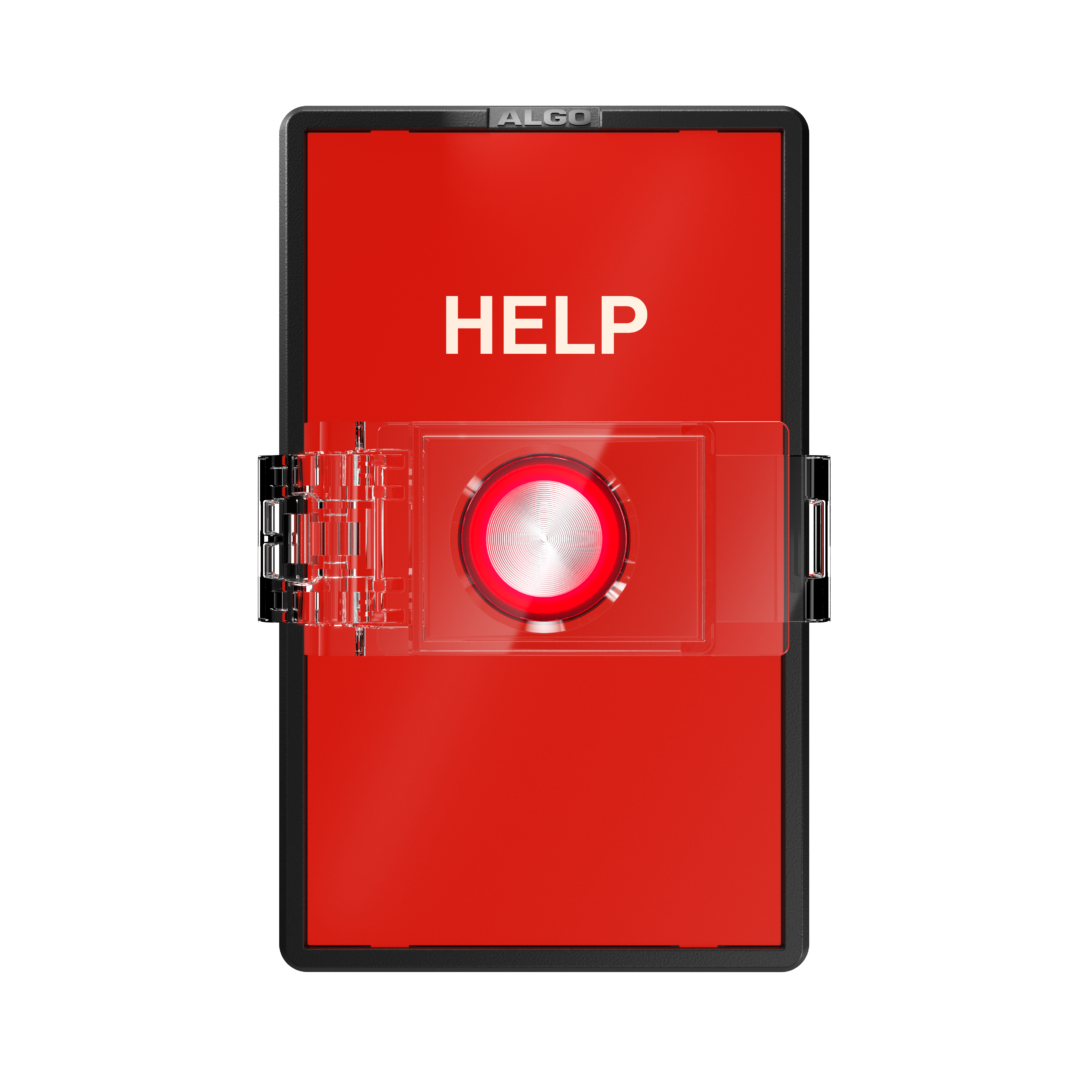

Algo 8211 IP Single Button
Algo 8211

Simple Button. Powerful IP Connectivity.

The Algo 8211 IP Single Button is a standalone IP endpoint that connects directly to the network. It provides a simple physical interface for initiating configured communication and alert workflows.

The button supports both press and long-press actions, allowing two configurable actions from a single physical button.

With PoE power, SIP support, multicast capability, configurable multi-color illumination and optional protective coverage, the 8211 can be adapted to a variety of communication environments.

Explore Features →
PoE Powered Powered through the network using IEEE 802.3af PoE.
One Configurable Button Supports press and long-press actions for flexible workflows.
Multi-Color Illumination Configurable colors, brightness and flash patterns provide visual feedback.
Selectable Labels Faceplate labels can help clearly identify the button's purpose.
Optional Protection Optional protective cover helps reduce accidental presses.
SIP & Multicast SIP-compliant and multicast-capable with API support.
Key Features

Designed for Fast & Reliable Activation

The Algo 8211 combines a simple physical button interface with network-based communication, monitoring and configurable visual feedback.

01

Standalone IP Endpoint

Connect the 8211 directly to the network wherever a network connection is available, without requiring a separate IP endpoint.

02

Two Configurable Actions

Configure separate actions for a standard press and long press, providing two workflows from one physical button.

03

SIP Communication

SIP support allows the 8211 to integrate with compatible communication and notification infrastructure.

04

Multicast Capable

Supports RTP multicast for distributing pre-recorded audio across configured zones.

05

API Support

RESTful API support enables integration with compatible systems and automation workflows.

06

ADMP Compatibility

Compatible with Algo Device Management Platform for centralized device visibility and supervision.

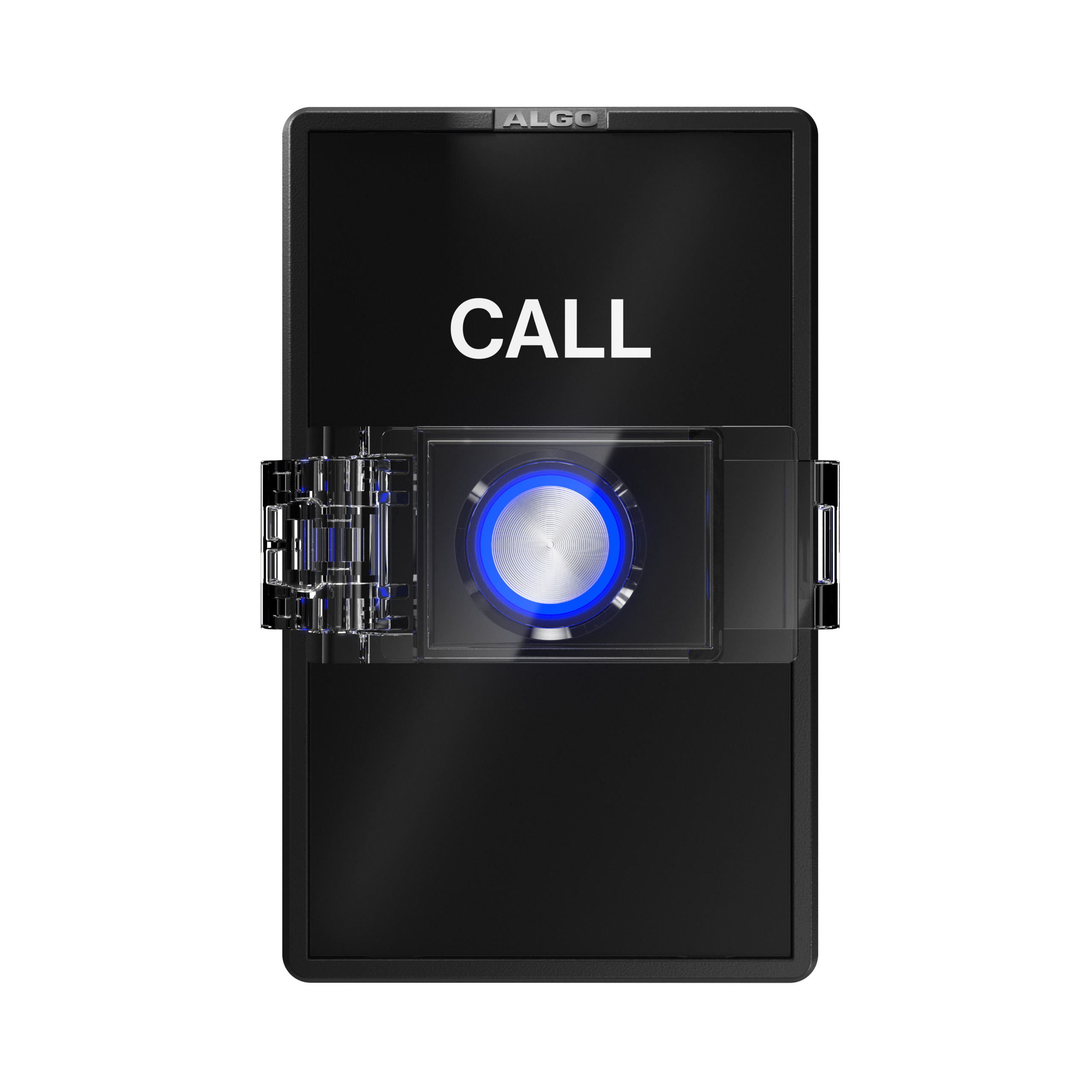

Network Connectivity

Connect Directly to the Network

As a standalone IP endpoint, the 8211 can be deployed anywhere a network connection is available.

It provides independent device management, direct SIP registration and device-level monitoring. This makes the 8211 suitable for locations where a dedicated physical button needs to initiate a defined communication or alert workflow.

The device supports IPv4, IPv6, DHCP, VLAN, mDNS, LLDP, CDP and IEEE 802.1X networking.

Algo 8211 IP network connectivity
Algo 8211 multi-color illuminated button

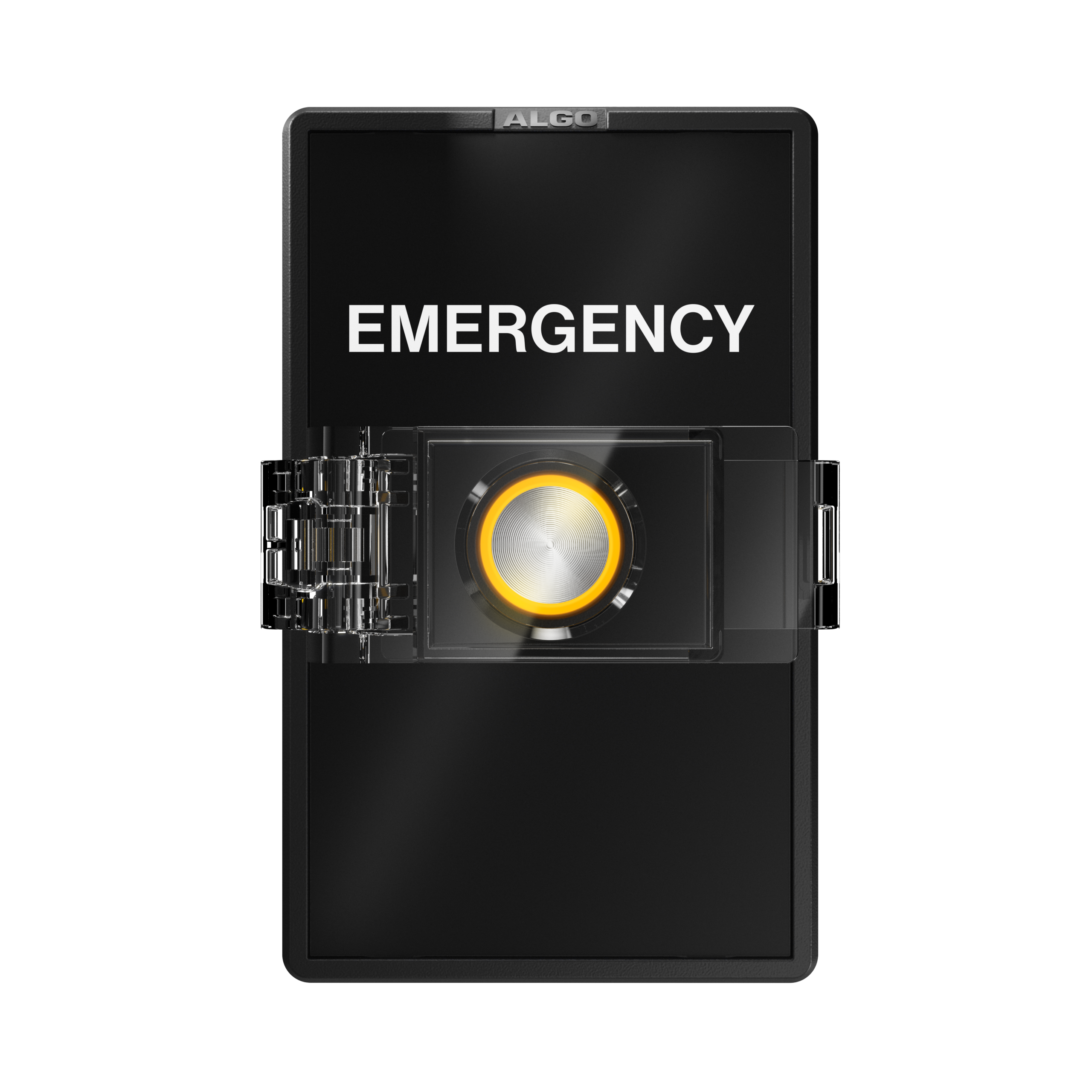

Visual Feedback

Confirm Status with Multi-Color Illumination

The configurable illuminated button provides visual feedback to help users understand the button's current state and confirm when an activation has been detected.

The illumination can be configured using different brightness levels, colors and flash patterns.

Blue
Red
Green
Amber
Easy Identification

Identify & Protect the Button

Clear identification and optional physical protection help make the 8211 easier and safer to use in everyday and emergency workflows.

01

Selectable Faceplate Labels

Use appropriate faceplate labels to clearly communicate the button's purpose, location, language or response type.

02

Optional Protective Cover

Add an optional protective cover where additional protection against accidental button presses is required.

03

Wall or Flush Mounting

The 8211 supports flush mounting or wall surface mounting using compatible single-gang electrical box or low-voltage bracket installations.

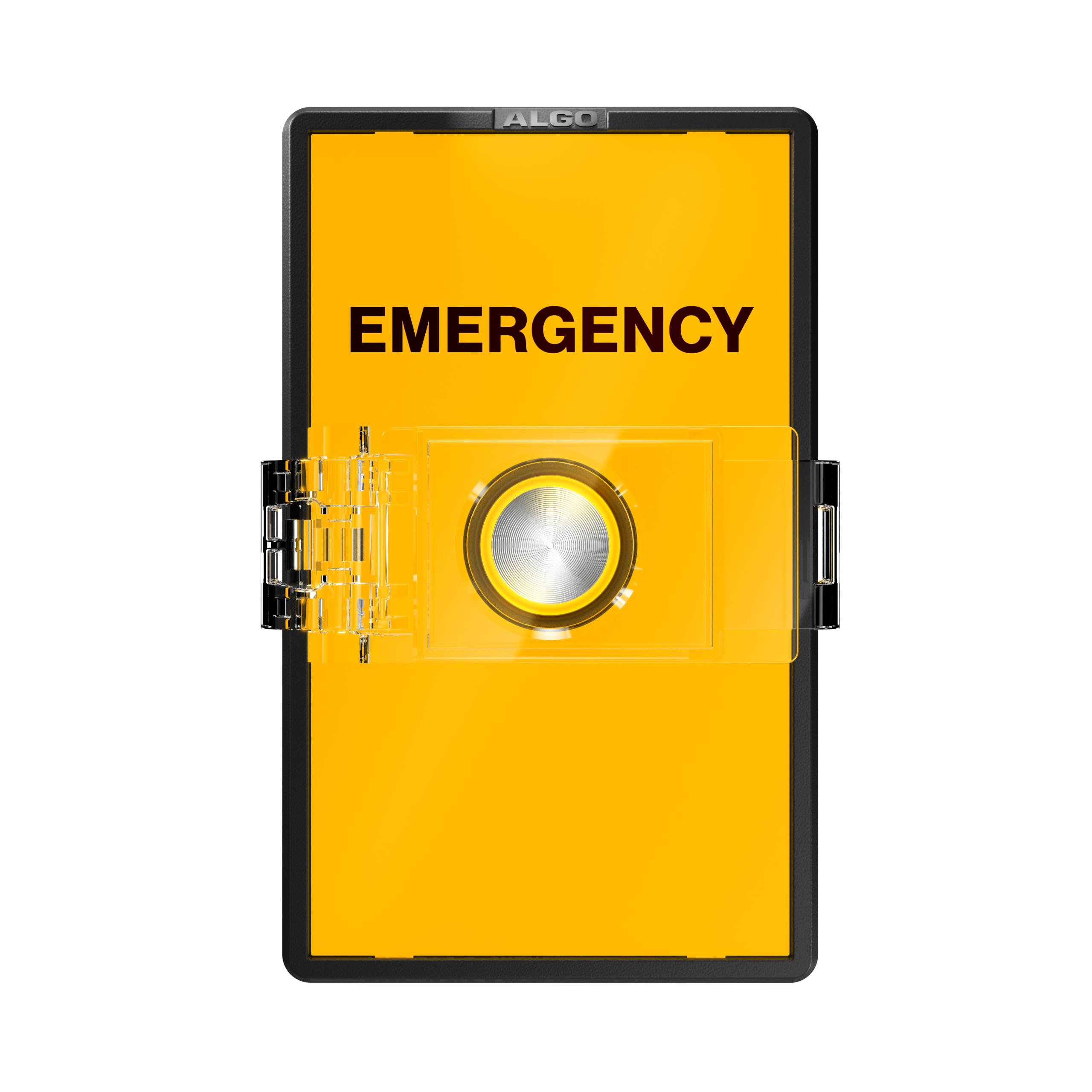

Device Monitoring

Centralized Device Supervision

The 8211 can be configured as an operational button or as a supervised panic button for defined communication and alert workflows.

When used with the Algo Device Management Platform (ADMP), organizations can gain centralized visibility into device status, connectivity and operational readiness.

The 8211 also supports supervision through compatible Algo and third-party monitoring environments.

Algo 8211 device supervision
Technical Specifications

Algo 8211 Specifications

Key technical information for planning and deployment.

Power
PoE (IEEE 802.3af Class 0), 48 V, 15.4 W
SIP
One SIP extension for outbound SIP calls with pre-recorded audio
SIP Protocols
UDP, TCP, RTP
Security
TLS, SRTP, Mutual Authentication
Audio Codecs
G.711 u-law, G.711 A-law, G.722 wideband
RTP Multicast
Up to 50 zones with pre-recorded audio
Multicast Codecs
G.711 u-law, G.711 A-law, G.722 wideband, Opus Fullband, L16
Compatibility
RESTful API, Poly Group Page, InformaCast, Microsoft Teams
Configuration
Web interface or provisioning server
Networking
IPv4, IPv6, DHCP, VLAN, mDNS
Link Layer
LLDP, CDP
QoS
DSCP
Button Illumination
4 colors, 4 flash patterns, 3 brightness levels
Operating Environment
0 to +40°C; 10–95% RH noncondensing; dry indoor locations only
Dimensions
2.8 × 1.4 × 4.5 in (7.0 × 3.5 × 11.4 cm)
Product Weight
0.17 lbs (76 g)
Mounting
Flush mounting or wall surface mounting; single-gang electrical box or low-voltage bracket
Applications

Where Can the Algo 8211 Be Used?

The 8211 is designed for locations where a simple physical button can initiate communication, assistance or alert workflows.

Education

Teacher assistance requests, administrative communication and emergency workflows.

Healthcare

Staff assistance, escalation and emergency communication workflows.

Workplace Safety

Employee assistance and emergency notification in offices and commercial facilities.

Front Desk

Quick communication and assistance requests from reception and service counters.

Secure Areas

Supervised assistance requests in controlled or restricted areas.

Government Facilities

Communication and emergency workflows in public-sector facilities.

!

Important Safety Information

Dry Indoor Location Only: The Algo 8211 is intended for dry indoor locations. Contact Algo for applications in outdoor or wet environments.

The 8211 should not be treated as a standalone life-safety or mass-notification system. Its operation depends on network availability, power continuity, configuration and associated systems.

Organizations should evaluate the suitability of the device for their specific application and implement appropriate redundancy, testing and failover measures where required.

Resources

Algo 8211 Resources

Product documentation and additional resources for planning and deployment.

Documentation

8211 Product Sheet

DOWNLOAD →
Documentation

8211 User Guide

VIEW GUIDE →
Comparison

Compare Algo Buttons

COMPARE PRODUCTS →
